GPL Series Packaged Chillers
Overview

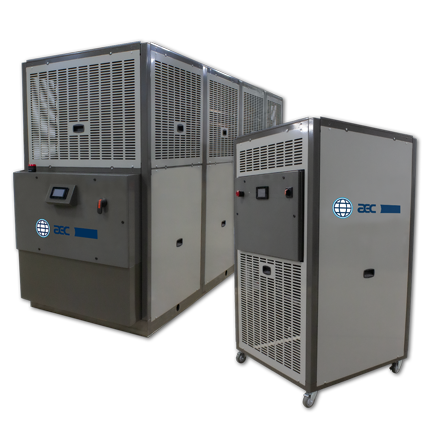

The GPL Packaged Chiller is a compact, all-in-one industrial process cooling system engineered for reliable, energy-efficient temperature control. Available in capacities from 5 to 60 tons, GPL chillers maintain process fluid temperatures from 20°F to 80°F (-6.7°C to 26.7°C) and are offered in air-cooled, water-cooled, and remote-cooled configurations to support a wide range of manufacturing applications.
Designed for flexibility and performance, GPL packaged chillers provide customizable cooling solutions with a broad range of available options to meet specific process requirements. Their versatile design delivers dependable process cooling for plastics processing, food and beverage production, pharmaceutical manufacturing, chemical processing, die casting, and other industrial manufacturing operations.
Specifications
Models
| Tons | Air Cooled | Water Cooled | Remote Cooled |
|---|---|---|---|
| 5 | GPL05A | GPL05W | - |
| 7.5 | GPL07A | GPL07W | - |
| 10 | GPL10A | GPL10W | GPL10R |
| 15 | GPL15A | GPL15W | GPL15R |
| 20 | GPL20A | GPL20W | GPL20R |
| 25 | GPL25A | GPL25W | GPL25R |
| 30 | GPL30A | GPL30W | GPL30R |
| 40 | GPL40A | GPL40W | GPL40R |
| 50 | GPL50A | GPL50W | GPL50R |
| 60 | GPL60A | GPL60W | GPL60R |
GPL (Air-Cooled Circuits, 60 hz)
| Model Number | Cooling Capacity 410A¹ 60 hz Tons | Cooling Capacity 454B¹ 60 hz Tons | Power² | Dimensions in Inches | Shipping Wt.³ Lbs | ||
|---|---|---|---|---|---|---|---|
| FLA | Height | Width | Depth | ||||
| GPL05A | 5.0 | 4.7 | 12.1 | 77 | 43 | 43 | 550 |
| GPL07A | 7.3 | 7.0 | 18.6 | 77 | 43 | 43 | 725 |
| GPL10A | 10.1 | 9.7 | 22.4 | 87 | 47 | 54 | 775 |
| GPL15A | 14.6 | 14.1 | 30.6 | 87 | 47 | 54 | 975 |
| GPL20A | 20.8 | 20.0 | 48.0 | 87 | 47 | 94 | 1700 |
| GPL25A | 26.2 | 25.4 | 52.7 | 87 | 47 | 94 | 1775 |
| GPL30A | 29.6 | 28.5 | 59.1 | 87 | 47 | 94 | 2000 |
| GPL40A | 41.2 | 39.1 | 76.1 | 84 | 47 | 135 | 2650 |
| GPL50A | 47.9 | 46.0 | 88.9 | 84 | 47 | 135 | 2900 |
| GPL60A | 61.7 | 59.0 | 113.1 | 88 | 50 | 175 | 3350 |
1.) Net Cooling Capacity Available @50F LWT and 95°F ambient air temperature with standard pump (60 hz)
2.) Full load amperage (FLA) @460/3/60 with standard pump
3.) Shipping weight estimated, actual weight determined at time of shipment
GPL (Water-Cooled Circuits, 60 hz)
| Model Number | Cooling Capacity 410A¹ 60 hz Tons | Cooling Capacity 454B¹ 60 hz Tons | Power² | Dimensions in Inches | Shipping Wt.³ Lbs | ||
|---|---|---|---|---|---|---|---|
| FLA | Height | Width | Depth | ||||
| GPL05W | 5.5 | 5.1 | 11.0 | 74 | 43 | 43 | 550 |
| GPL07W | 8.2 | 7.8 | 16.5 | 74 | 43 | 43 | 725 |
| GPL10W | 11.1 | 10.5 | 20.3 | 85 | 47 | 54 | 775 |
| GPL15W | 16.5 | 15.4 | 27.2 | 85 | 47 | 54 | 975 |
| GPL20W | 22.0 | 20.8 | 41.2 | 86 | 47 | 95 | 1725 |
| GPL25W | 28.7 | 27.2 | 45.9 | 86 | 47 | 95 | 1875 |
| GPL30W | 33.2 | 31.1 | 52.3 | 86 | 47 | 95 | 2125 |
| GPL40W | 45.0 | 41.7 | 65.9 | 83 | 47 | 135 | 2400 |
| GPL50W | 54.1 | 50.7 | 78.7 | 83 | 47 | 135 | 2475 |
| GPL60W | 69.8 | 64.8 | 99.5 | 83 | 47 | 135 | 2625 |
1.) Net Cooling Capacity Available @50F LWT and 85°F entering condenser water temperature with standard pump (60 hz)
2.) Full load amperage (FLA) @460/3/60 with standard pump
3.) Shipping weight estimated, actual weight determined at time of shipment
GPL (Remote-Cooled Circuits, 60 hz)
| Model Number | Cooling Capacity 410A¹ 60 hz Tons | Cooling Capacity 454B¹ 60 hz Tons | Power² | Dimensions in Inches | Shipping Wt.³ Lbs | ||
|---|---|---|---|---|---|---|---|
| FLA | Height | Width | Depth | ||||
| GPL10R | 10.0 | 9.6 | 20.3 | 59 | 49 | 54 | 495 |
| GPL15R | 14.8 | 14.1 | 27.2 | 59 | 49 | 54 | 695 |
| GPL20R | 19.8 | 18.9 | 41.2 | 59 | 47 | 94 | 1170 |
| GPL25R | 25.7 | 24.7 | 45.9 | 59 | 47 | 94 | 1240 |
| GPL30R | 30.8 | 29.2 | 52.3 | 59 | 47 | 94 | 1470 |
| GPL40R | 40.6 | 38.3 | 65.9 | 56 | 47 | 135 | 1870 |
| GPL50R | 48.6 | 46.1 | 78.7 | 56 | 47 | 135 | 2120 |
| GPL60R | 62.7 | 59.2 | 99.5 | 56 | 47 | 135 | 2370 |
1.) Net Cooling Capacity Available @50F LWT and 95°F ambient air temperature with standard pump (60 hz)
2.) Full load amperage (FLA) @460/3/60 with standard pump
3.) Shipping weight estimated, actual weight determined at time of shipment
GPL (Remote Condensers, 60 hz)
| Model Number | Fans | CFM | Power¹ | Dimensions in Inches | Shipping Wt.² Lbs | ||
|---|---|---|---|---|---|---|---|
| FLA | Height | Width | Depth | ||||
| 10R | 1 | 9,900 | 3.3 | 49 | 45 | 74 | 340 |
| 15R | 2 | 20,500 | 7.0 | 49 | 45 | 127 | 580 |
| 20R | 2 | 19,800 | 7.0 | 49 | 45 | 127 | 630 |
| 25R | 2 | 19,000 | 7.0 | 49 | 45 | 127 | 680 |
| 30R | 3 | 28,500 | 10.5 | 49 | 45 | 180 | 1,000 |
| 40R | 4 | 38,600 | 14.0 | 49 | 45 | 233 | 1,210 |
| 50R | 4 | 37,000 | 14.0 | 49 | 45 | 233 | 1,310 |
| 60R | 5 | 46,200 | 17.5 | 49 | 45 | 286 | 1,640 |
1.) Full load amperage (FLA) @460/3/60
2.) Shipping weight estimated, actual weight determined at time of shipment
Features
| Standard Features | Optional Features |
|---|---|
| Scroll compressors | Automatic water make-up valve (water only, not glycol) |
| Evaporator – stainless steel copper-brazed plate | Process water side stream filter (50 microns) w/monitoring flow meter |
| Condenser (Air) – micro-channel | 0.3 in. WC high pressure fans (air cooled only) |
| Condenser (Water, 5-15 Ton) – tube-in-tube | Stainless steel (304) reservoir |
| Condenser (Water, 20-60 Ton) – shell-and-tube | Mounting feet (5 to 30 Tons) |
| Y-strainer (5-15 Ton) | External manual bypass |
| Evaporator inlet strainer (20-60 Ton) | cULus Listed Control Panel Serialized Label |
| Structural steel frame and panels | Ontario electrical code (Hydro) |
| Hot gas bypass capacity control | Sensor package – entering condenser, refrigerant suction, and refrigerant liquid temperatures |
| Thermal expansion valve | Less reservoir tank and pump |
| Internal manual fluid bypass valve | Electrofin condenser coating (Air cooled models only) |
| Swivel casters (5-30 Ton) | Alternate voltages |
| Mounting channels (40-60 Ton) | Various pump sizes and types |
| R-410A or R-454B refrigerant | 4 year compressor parts warranty |
| High and low refrigerant pressure sensors | Phase Monitor |
| High pressure spring actuated relief valve | MiVue® – Digital Solutions Platform |
| Multiple refrigeration access ports | Communications options (Modbus RS485, Modbus TCP/IP, Profibus DP, BACnet RS485, BACnet IP, Ethernet, Ethernet/IP) |
| Fans – motors w/VFD control in NEMA 1 enclosure (air-cooled) | Outdoor applications |
| Filter dryer and sight glass (refrigerant) | Higher altitudes (3301-6600 ft and 6601-8700 ft) |
| Fully insulated process water piping | Special Wet Paint Colors |
| 460/3/60 power | |
| NEMA 12 electrical control enclosure | |
| Non-fused disconnect switch | |
| 2 year Parts warranty | |
| 1 year Factory Labor warranty | |
| 3 year Controller warranty | |
| 1 year Compressor warranty |
